■ ⾼性能355nm紫外激光器，激光光束质量稳定，聚焦光斑⼩，可实现超精细打标。
■ 光路采⽤封闭式设计，安全性⾼；使⽤寿命⻓，维护成本低
■ 主要应⽤精密部件、汽⻋控制元件、薄⽚陶瓷、半导体晶⽚、IC晶粒、 蓝宝⽯等材料的精细打标，精细切割

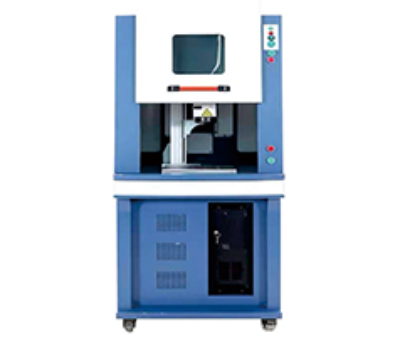

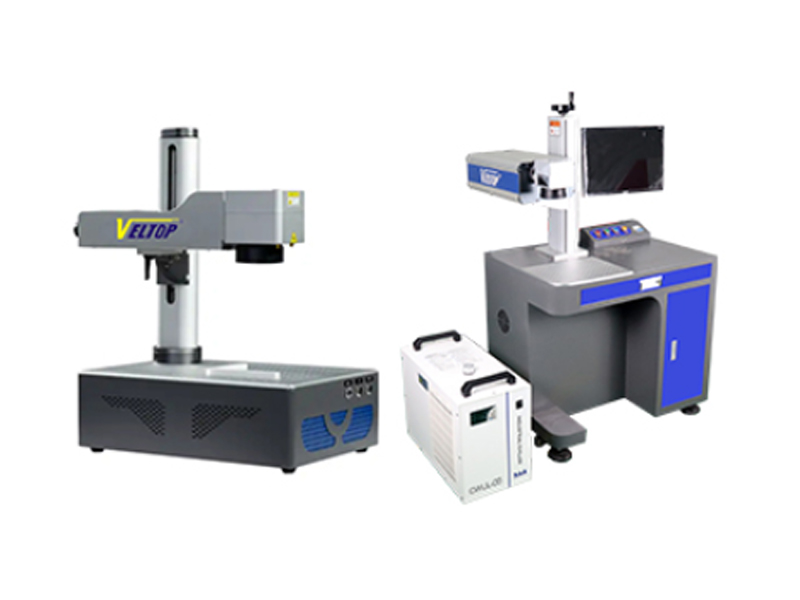

■ 有⼯作台和便携分体式两款可选，体积⼩巧紧凑，便于⾃动化设备集成
■ Adoption of high performance 355nm UV laser, superior quality for laser beam with tiny spot, suitable for superfine marking.
■ Selection for rotary double station table and split structure.
■ Adoption of air- cooling system under 5W (contained) , easy for integration, small size, especially suitable for flying industry.
■ Applied to fine marking, precise cutting, and precise processing of special material, mainly used for these materials, such as all kinds of glass, LCDscreen, textiles,chip ceramicm, semiconductor, IC grain, sapphire, thinpolymer film and etc.
| 电源型号 | MODEL | UV-3W | UV-5W | UV-8W |
|---|---|---|---|---|
| 激光输出功率 | Output Power | ≤3W | ≤5W | ≤8W |
| 激光波长 | Laser Wavelength | 355nm | ||
| 光束质量 | Beam quality | ＜1.2 | ||
| 激光工作方式 | Laser working mode | 脉冲 | ||
| 激光器寿命 | Laser machine Life | ≤5万小时 | ||
| 激光调控频率 | Laser control frequency | 1kHz-80kHz | ||
| 标准雕刻范围 | Standard marking range | 100mm×100mm | ||
| 可选配雕刻范围 | Optional marking range | 50mm×50mm，150mm×150mm | ||
| 雕刻深度 | Marking depth | ≤1.0mm（视材料可调） | ||
| 最小线宽 | Minimum line width | 0.01mm（视雕刻范围而定） | ||
| 最小字符高度 | Minimum character high | 0.1mm（视雕刻范围而定） | ||
| 重复精度 | Repeat accuracy | ±0.001mm | ||
| 雕刻速度 | Marking speed | ≤10000mm/s | ||
| 电力需求 | Power supply | 单向交流AC220V/50-60Hz 10A | ||
| 整机功率 | Consumption | ≤1200W | ≤1200W | ≤1500W |
| 机器尺寸 | Dimensions | 以各款实物为准 | ||
| 冷却 | Cooling Way | 恒温水冷冷却机组 | ||
| 净重 | Weight | 以各款实物为准 | ||
