产品中心
各类精密焊接系列产品,为客户提供先进精密焊接设备

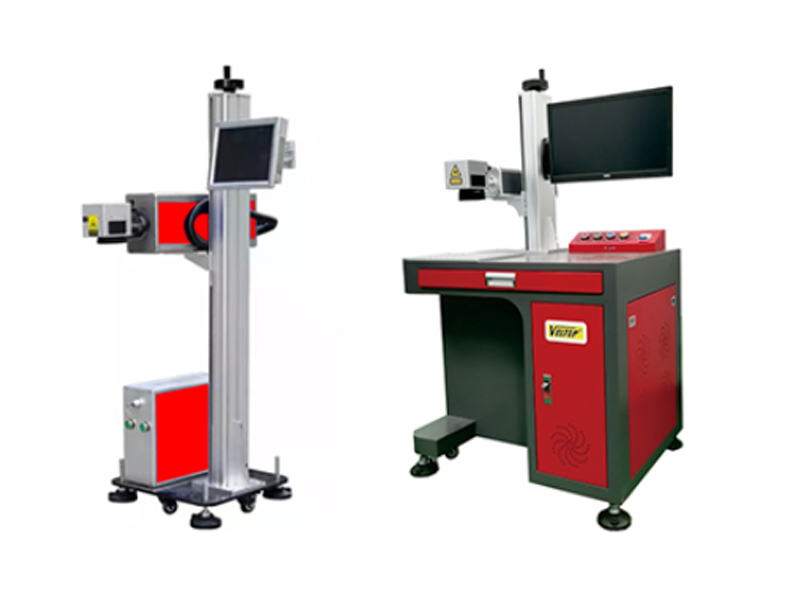

工作台式 分体式

光纤激光打标系统

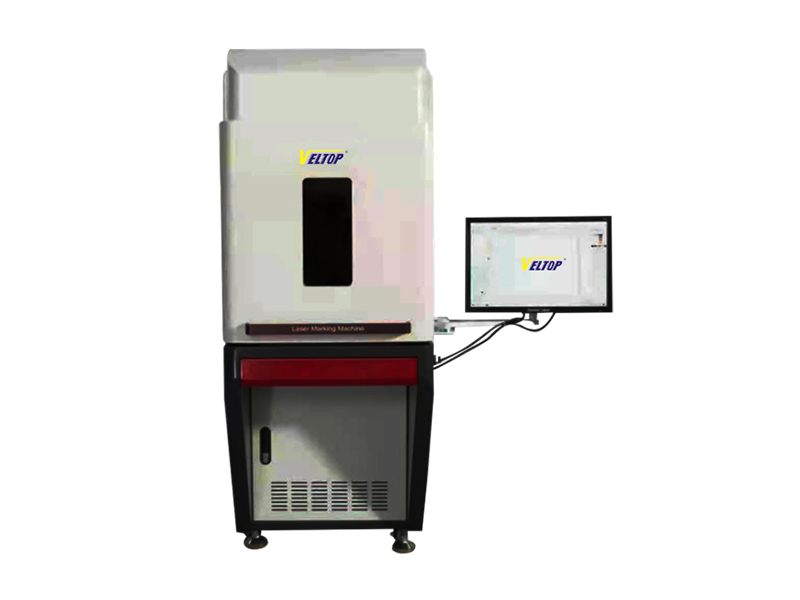

光纤激光打标机

适用于金属材料的高品质光纤激光打标机

特点:

■ ⾼效能⾼品质光纤激光器,打标速度快、效率⾼,适⽤于超精细打标

■ 使⽤寿命⻓,激光输出功率稳定,激光器10万⼩时免维护

■ 电光转换率⾼,⽆功率耦合损失,⽆耗材

■ ⼴泛应⽤于精密电⼦元器件、传感器、汽⻋零部件、精密器械、电池等⾏业, 对产品标记条形码,⼆维码及相关产品信息

■ 有⼯作台和便携分体式两款可选,体积⼩巧紧凑,便于⾃动化设备集成

■ Adoption of international high quality heating fiber laser,suitable for superfne marking

■ Fast marking,high efficient

■ Long life for the machine,stable output power for the laser,and 100,000 hours maintenance-free for the laser

■ High electric-optical conversion rate,no power coupling loss,no consumable

■ Small and compact size,suitable for automative equipment integration

■ It is applied to electronic components,hardware tools,electronic products,consumer goods,sensors,auto parts,carfts,precision instruments,medical instruments,battery industry,gifts and decorative accessories,and etc

■ There are two options for working desktop and portable split



               电源型号

               MODEL

               VLM-F20

               VLM-F30

               VLM-F50

               平均输出功率

               Average Output Power

               20W

               30W

               50W

               激光波长

               Laser Wavelength

               1064nm

               最大雕刻速度

               Maximum engraving speed

               700mm/s

               打标幅面

               Marking wide

               70mm*70mm、110mm*110mm、175mm*175mm(可选/optional)

               最小字符高度

               Minimum character high

               0.2mm

               标刻深度

               Marking depth

               0.01mm~0.4mm(根据材料/according to materials)

               最小线宽

               Minimum line width

               0.01mm

               供电电源

               Power supply

               0.8KW / AV220V / 50KHz

               冷却方式

               Cooling type

               全冷风 / All air-cooled

               保护罩

               Protective cover

               选配 / Adapting

               烟雾净化器

               Smoke cleaner

               选配 / Adapting
