产品中心
各类精密焊接系列产品,为客户提供先进精密焊接设备

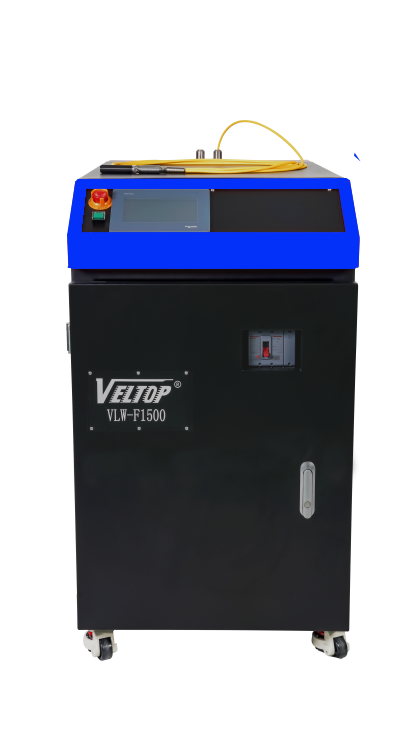

蓝光激光焊接机

蓝光激光器针对铜铝等材料拥有更高的吸收率,可以以更低的功率实现对有色金属的加工,结构紧凑、使用方便。能够与系统设备进行集成。可应用于高反射金属焊接。

特点:

■ 有色金属吸收率非常高
■ 无飞溅、无须焊后处理
■ 蓝光500W即可实现与几千瓦红外激光焊接效果
■ 简易的控制接口,卓越的系统稳定性
■ 光束质量好,有连续和调制脉冲两种模式,最大调制频率5kHz
■ 电光转化效率高、更好的功率稳定性
■ 低成本、免维护

■ Blue light laser has the high absorbency of Non-ferrous metals
■ No spatter, no extra treatment required after welding
■ It (500W power) can achieve the same effect as multi-kilowatt infrared laser
■ Simple control interface and excellent system stability
■ Two kinds of control modes: continuous and pulse
■ Maintenance free

型号MODELVLW-B500VLW-B1000VLW-B1500
激光波长/nmLaser Wavelength430-470nm
连续输出功率Output Power500W1000W1500W
最大调制频率Max Control FM5kHz
工作模式Work mode连续/Continuous、  调制/Modulation
功率调节范围(%)Power setting range10% ~ 100%
输出功率稳定度(%)Output power stability<3%
控制方式Control modeRS232或I/O控制    I/O or RS232
光纤芯径Fiber parameter400μm400μm600μm
光纤长度Fiber length5M或10M   可定制/Customizable
光纤输出类型Fiber output type QBH
冷却方式Cooling mode水冷/Water cooling
输入电源Input power3φ AC,PE 380V±20V , 50/60Hz
重量Weight<80kg
